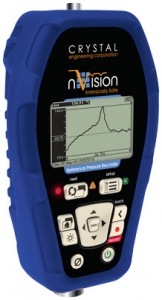

Crystal Engineering nVision Pressure Calibrator Data Logger

Reference Pressure & Temperature Recorder!

It's not just a new pressure calibrator or a new pressure recorder. It’s a field calibrator that can display recorded data graphically on a high resolution screen. No need to stop a test to analyze data on a PC. Stored data, or data being recorded can be displayed graphically, with the ability to zoom into specific events, or zoom out to get a big picture of your test. There's never been anything like this!

Pressure accuracy to 0.025% of reading
Field-replaceable modules: pressure, temperature, current and voltage
Temperature compensation from -20°C to 50°C
ATEX/IECEx intrinsically safe
Log and display 500,000 points at up to 10 readings/sec on up to two modules simultaneously
IP67 (1 meter submersion for 30 minutes)
Uses our new CPF hose and fitting system (leak-free and finger tight to 10K PSI)
Analyze live data graphically - no PC required.
Connect to a PC to download stored data or view live readings without stopping datalogging

Backlit Display
Description: 255 x 160 pixel graphical display with integrated backlight.
Display rate: selectable up to 10 readings per second.

Power
AA Battery Module: Four size AA (LR6) batteries; user serviceable, non-chargeable.
Battery life: 200 hours typical (alkaline battery).
Note: Chassis can be powered remotely by the mini-USB connector on the side of the product
WARNING: Do not use USB interface in a hazardous atmosphere.

Temperature
Operating & Compensated: -20 to 50°C (-4 to 122°F)¹.
Storage: -40°C to 75°C (-40°F to 167°F).
¹No change in accuracy over operating range for all modules. Pressure sensor must be zeroed to achieve rated specification.

Humidity
< 95% RH, non-condensing

IP Rating
IP67 (1m immersion for 30 min) per ISO 60529

Enclosure
impact resistant injection molded housing compatible with common industrial fluids, including Skydrol.
Weight: 680g (1.5 lbs), including one pressure sensor, AA battery module, and protective boot.

Intrinsic Safety
CE Declaration of Conformity
ATEX EC Declaration of Conformity, II 1 G Ex ia IIB T4 Ga, SIRA 09ATEX2008X
IECEx Certificate of Conformity, II 1 G Ex ia IIB T4 Ga, IECEx SIR09.0053X
Rating subject to battery type used.

Pressure Connections
Crystal CPF System: Medium Pressure Female (MPF) (1/4" medium pressure tube system with 7/16-20 threads).
Fitting interfaces with the Crystal Pressure Fittings (CPF) System; finger tight to 10,000 PSI from -20°C to 50°C. System can interface wrench-tight with non-CPF 1/4" medium pressure fitting, adapter, and piping system: HIP LM4 & LF4 Series, Autoclave Engineers SF250CX Male and female series.

Media Compatibility
Liquids and gases compatible with 316 stainless steel.
