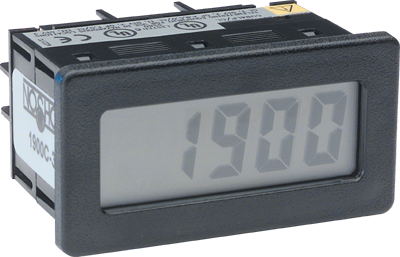

SERIES 1900C LOOP POWERED DIGITAL INDICATORS
Noshok Series 1900 Compact Digital Indicators provide digital display of any desired unit of pressure, temperature, level, force or flow measurement. Their 3 1/2 digit display has a span range of 0 to 1999 and is available in a positive image reflective LCD or in an optional back-lit version.
They are housed in a compact, lightweight, impact resistant plastic case with a clear viewing lens. The sealed front panel installation also meets NEMA 4x/IP65 specifications for wash down and dusty environments, when properly installed.
IPS calibrates all of its indicators to your transducer at no additional cost. Simply tell us how you want it set up, then plug it in and go; no muss,no fuss, no charge!
Display 3 1/2 digit (- 1999 to 1999), 0.6 ? tall LCD
Display type Positive image reflective LCD standard; red or yellow/green backlight transflective LCD optional
Power supply 1900C-1/1900C-2: Loop Powered, 4 mA to 20 mA or 10 mA to 50 mA 1900C-3/1900C-4: Loop Powered Display w/backlight power supply 115/230 Vac, 50/60 Hz, 3VA required for backlight power supply, unregulated
Input signal 4 mA to 20 mA or 10 mA to 50 mA
Input impedence 160 ohms max @ 20 mA; 60 ohms max @ 50 mA
Maximum input current 100 mA
Span range 0 to 1999
Offset range -1999 to 1999
Linearity ±0.1 % to 1 digit
Reading rate 2.5 Readings per second, nominal
Response time 1.5 seconds to settle for a step change
Temperature ranges Storage -40 ° to 175 °F/-40 ° to 80 °C
Operating 32 ° to 140 °F/0° to 60 °C
Thermal effect Span: 100PPM/°C (reference temperature Offset: 0.2 digits/°C 68°F/20°C)
Electromagnetic rating CE compliant to EMC norm EN 61326:1997/A1:1998 RFI, EMI and ESD protection
